Is Your Car Battery on Its Last Leg? A Complete Guide to Load Testing at Home or in the Shop
A dead car battery is a frustrating inconvenience, often striking at the worst possible moment. But it doesn't have to be a mystery. Learning how to check car battery health is a valuable skill that can save you time, money, and the aggravation of being stranded. While auto parts stores like Auto Zone and O'Reilly offer free battery check services, understanding how to perform a battery load test yourself provides a deeper level of insight and allows you to proactively maintain your vehicle's electrical system. This comprehensive guide will walk you through the process, whether you're a seasoned DIYer or just starting to learn about automotive maintenance.
Why Bother with a Battery Load Test?
Simply checking the voltage of your vehicle battery isn't enough. A battery can show a good voltage reading even when it lacks the power to crank the engine. That's where a load test comes in. A load test simulates the heavy electrical draw of starting the engine, revealing the battery's ability to deliver sustained power under stress. This is critical for diagnosing low voltage issues accurately. Regular battery health checks, including load testing, can help you identify a weak or failing battery before it leaves you stranded. By catching problems early, you can choose to recharge the battery (in some cases) or replace it proactively, preventing unexpected breakdowns.
Understanding Car Battery Voltage: What's Normal?
Before diving into the testing procedure, it’s crucial to understand the correct voltage range for car batteries. A healthy, fully charged 12V battery should read approximately 12.6 volts or higher when the engine is off and the car has been sitting for a while (at least a few hours). This is known as the "resting voltage."
Resting Voltage (Engine Off): 12.6V or higher is ideal.
12.4V is still acceptable, but below that indicates a potential problem.
12.2V or lower signifies a significantly discharged battery. During Starting (Cranking):The voltage will drop significantly when you turn the key to start the engine. A healthy battery should maintain at least
9.6 volts during cranking. If it drops below this, it indicates a weak battery or a problem with the starting system. While Running (Charging):Once the engine is running, the alternator takes over and charges the battery. You should see a voltage reading between
13.7 and
14.7 volts. This confirms that the alternator is working properly and replenishing the battery's charge.
A car battery voltage chart can be a handy reference to keep in your garage. However, remember that these are general guidelines, and specific vehicles may have slightly different requirements. Consult your vehicle's owner's manual for the most accurate information.
Tools You'll Need for 12V Car Battery Testing Digital Multimeter: This is your primary tool for measuring voltage. Make sure it's set to read DC voltage. Battery Load Tester (Optional but Recommended): A dedicated load tester applies a specific load to the battery and provides a more accurate assessment of its performance under stress. These are available at various price points. Safety Glasses: Always protect your eyes when working with batteries. Gloves (Optional): Protect your hands from acid and grime. Wire Brush or Battery Terminal Cleaner: To clean corrosion from the battery terminals. Wrench:To loosen and tighten battery terminals (usually 10mm).
Step-by-Step Guide: How to Test Car Battery with a Multimeter
This guide provides a basic voltage test. For a true load test, use a dedicated load tester (explained later).
1.Safety First: Wear safety glasses and gloves. Make sure the vehicle is parked on a level surface and the engine is off. Engage the parking brake.
2.Clean the Terminals: Inspect the battery terminals for corrosion (a white or bluish-green buildup). Use a wire brush or battery terminal cleaner to remove any corrosion. This ensures a good connection for accurate readings.
3.Set Up the Multimeter: Set your digital multimeter to read DC voltage (usually indicated by a "V" with a straight line above it). The range should be set to 20V or higher to accommodate the typical voltage of a car battery.
4.Connect the Multimeter:
Connect the red (positive) lead of the multimeter to the positive (+) terminal of the battery.
Connect the black (negative) lead of the multimeter to the negative (-) terminal of the battery.
5.Read the Resting Voltage: Observe the voltage reading on the multimeter. As mentioned earlier, a healthy battery should read
12.6V or higher. Record this reading.
6.Starting Voltage Test: Have someone start the engine while you observe the multimeter. The voltage should not drop below
9.6V during cranking. Note the lowest voltage reading during the start.
7.Charging Voltage Test: Once the engine is running, observe the voltage reading. It should be between
13.7 and
14.7 volts, indicating that the alternator is charging the battery.
8.Interpret Your Results: Compare your voltage readings to the ranges provided earlier. This will give you a good indication of the battery's health.

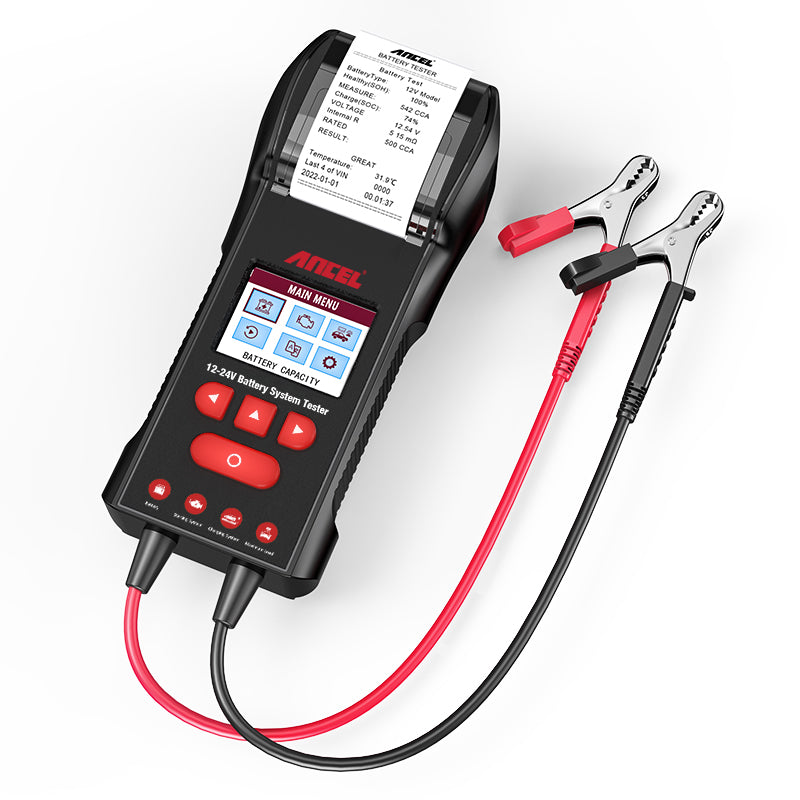

Performing a Load Test with a Dedicated Load Tester
While a multimeter can give you a voltage reading, a dedicated load tester provides a more accurate assessment of the battery's ability to deliver power under load. Here's a general outline:
1.Follow the Manufacturer's Instructions: Each load tester may have slightly different instructions, so read and understand the manual thoroughly.
2.Connect the Tester: Connect the load tester to the battery terminals, ensuring proper polarity (red to positive, black to negative).
3.Apply the Load: Activate the load test according to the tester's instructions. This typically involves applying a specific load for a set period (e.g., 15 seconds).
4.Observe the Voltage: Watch the voltage reading on the tester during the load test. The tester will usually have a gauge or display that indicates whether the battery passes or fails the test.
5.Interpret the Results: Most load testers have a clear indication of whether the battery is good, weak, or needs replacement.
Signs of a Weak or Failing Battery: Spotting Problems Early
Even before performing a formal test, there are several signs that indicate a potential problem with your car battery: Slow Engine Cranking: The engine takes longer than usual to start. Dim Headlights: Headlights appear dim, especially at idle. Electrical Issues: Problems with other electrical components, such as the radio, power windows, or windshield wipers. Check Engine Light: In some cases, a weak battery can trigger the check engine light. Visible Corrosion: Corrosion buildup on the battery terminals. Swollen Battery Case: An abnormal swelling of the battery case can indicate internal damage. Age of the Battery:Most car batteries last for 3-5 years. If your battery is approaching or exceeding that age, it's a good idea to have it tested regularly.
When to Recharge vs. When to Replace
A battery that consistently shows low voltage, even after a full charge, is likely nearing the end of its life and needs to be replaced. However, a battery that has been accidentally discharged (e.g., by leaving the headlights on) might be salvaged with a recharge.
Recharge: If the battery is relatively new and has been discharged due to an oversight, try recharging it with a battery charger. Follow the charger's instructions carefully. Replace: If the battery is old, shows signs of physical damage, consistently fails a load test, or won't hold a charge, it's time to replace it.
Cost Savings and Reliability Benefits of Regular Battery Checks
Performing regular battery checks, including checking vehicle battery voltage and load testing, offers several benefits: Avoid Unexpected Breakdowns: Catching a weak battery before it fails can prevent being stranded on the side of the road. Extend Battery Life: Proper maintenance, including cleaning terminals and ensuring proper charging, can extend the life of your battery. Save Money: Proactive replacement is often cheaper than dealing with the consequences of a dead battery, such as towing charges and emergency repairs. Improve Fuel Efficiency: A weak battery can put extra strain on the alternator, reducing fuel efficiency. Increase Safety:A reliable battery ensures that all your vehicle's electrical systems, including safety features like headlights and anti-lock brakes, function properly.
Common Mistakes When Testing or Charging a Car Battery Incorrect Polarity: Connecting the multimeter or battery charger with the wrong polarity (positive to negative) can damage the battery and the testing equipment. Using an Incompatible Charger: Using a charger that is not designed for your battery type can damage the battery. Overcharging: Overcharging a battery can damage it and shorten its lifespan. Ignoring Corrosion: Failing to clean corrosion from the battery terminals can lead to inaccurate readings and reduced performance. Not Wearing Safety Gear: Working with batteries can be hazardous, so always wear safety glasses and gloves.
Free Battery Check Services at Auto Parts Stores
As mentioned earlier, many auto parts stores, such as Auto Zone, O'Reilly, and Advance Auto Parts, offer free battery check services. This is a convenient option if you don't have a multimeter or load tester, or if you prefer to have a professional assess your battery's health. However, understanding how to perform these tests yourself gives you more control and insight into your vehicle's electrical system.
Future Battery Technologies
The automotive industry is constantly evolving, and battery technology is no exception. Newer vehicles are increasingly using advanced battery technologies such as: AGM (Absorbent Glass Mat) Batteries: These batteries are more durable, offer better performance, and are less prone to leaks than traditional flooded lead-acid batteries. Lithium-Ion Batteries: Used in hybrid and electric vehicles, lithium-ion batteries offer higher energy density and longer lifespans. Smart Battery Monitoring Systems:Some vehicles are equipped with sophisticated battery monitoring systems that provide real-time information about the battery's health and performance.
As these technologies become more widespread, understanding how to diagnose and maintain them will become increasingly important.
By following this comprehensive guide, you can confidently perform a battery load test at home or in the shop, ensuring your car battery is in optimal condition and preventing unexpected breakdowns. Remember to prioritize safety and always consult your vehicle's owner's manual for specific recommendations. Taking the time to understand your car's electrical system and perform regular maintenance will pay off in the long run with increased reliability and peace of mind.
